BOGBALLE · SOFTWARE UPDATES

Keep your BOGBALLE technology up to date.

Download software for your control units and follow the installation guidance for your equipment.

Software for control units

Select your product below. Please read the relevant update guidance before installing any software.

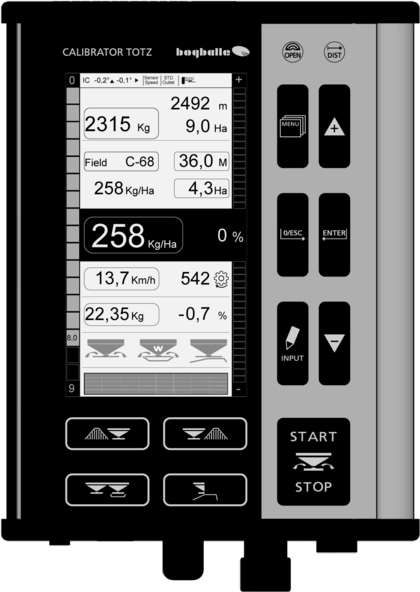

CALIBRATOR TOTZ

CALIBRATOR TOTZ

Version 3.08 (12/2025)

Download software
Installation guidance

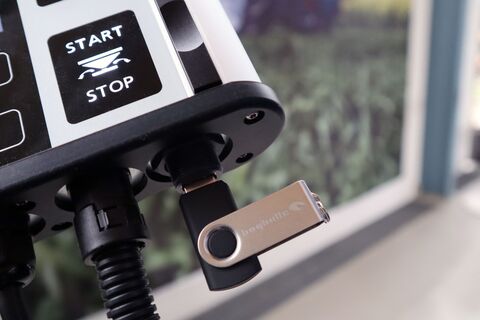

Remember to unzip the downloaded file before saving it on the USB stick!1. Unzip the downloaded file

2. Save the update file (TOTZxxx.BBS) to your USB stick
3. On CALIBRATOR TOTZ choose "MENU"
4. Choose "Data Transfer"
5. Choose "Update TOTZ from USB-stick"
6. Pick the file "TOTZxxx.BBS


For further pieces of information – please read the “Data Transfer” section in the operator’s manual for CALIBRATOR TOTZ!

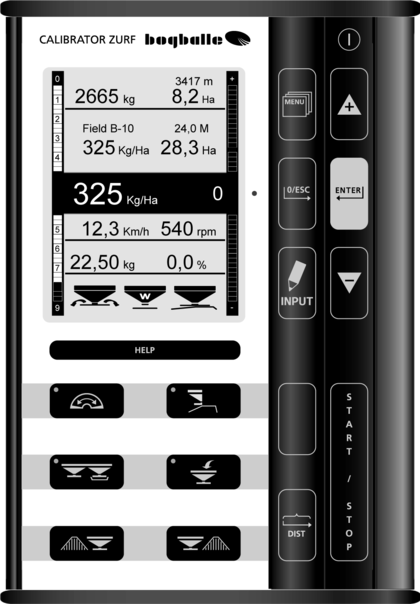

CALIBRATOR ZURF

CALIBRATOR ZURF

Version 4.06 (02/2022)

Download software
Installation guidance

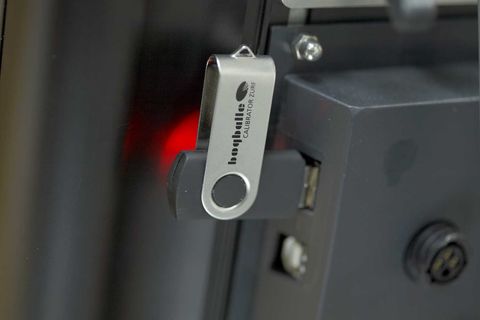

Remember to unzip the downloaded file before saving it on the USB stick!1. Unzip the downloaded file

2. Save the update file (ZURFxxx.ZBS) to your USB stick
3. On CALIBRATOR ZURF choose "MENU"
4. Choose "Data Transfer"
5. Choose "BOOTLOAD USB-stick"
6. Pick the file "ZURFxxx.ZBS


For further pieces of information – please read the “Data Transfer” section in the operator’s manual for CALIBRATOR ZURF!

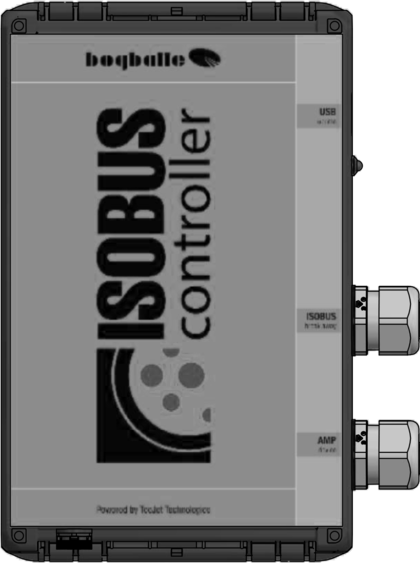

ISOBUS Controller (Gen II)

ISOBUS GEN II

Version 3.0.4 (12/2025)

Download software
Installation guidance

1. Download the software.

2. Run the program and follow the guidance.

3. Copy the folder "tjrun" to an EMPTY usb stick.
You'll find the "tjrun" folder on your desktop.

4. Turn on the ISOBUS Controller by plugin the ISOBUS plug on the tractor.
During the updating process – DO NOT BREAK THE CONNECTION by unplugging the ISOBUS Plug on the tractor and do not start the tractor. This will damage the ISOBUS Controller.

5a. When the LED lights green plug the usb stick into the ISOBUS Controller.
5b. When the LED lights red the firmware installer is copied to the ISOBUS Controller.
5c. When the LED lights green - remove the USB stick and restart the ISOBUS Controller by unplugging and hereafter plugin the ISOBUS Plug on the tractor.
(The ISOBUS Controller has no on/off switch).

6. The LED lights green a few seconds, and hereafter red or no light while the firmware is being updated.
Wait for the procedure to finish (This will take 10 minutes with no feedback from the ISOBUS Terminal).

When updated the ISOBUS terminal automatically turns on into the BOGBALLE test menu and the ISOBUS is now ready for operation.

During updating the firmware – DO NOT BREAK THE CONNECTION by unplugging the ISOBUS Plug on the tractor and do not start the tractor. This will damage the ISOBUS Controller.

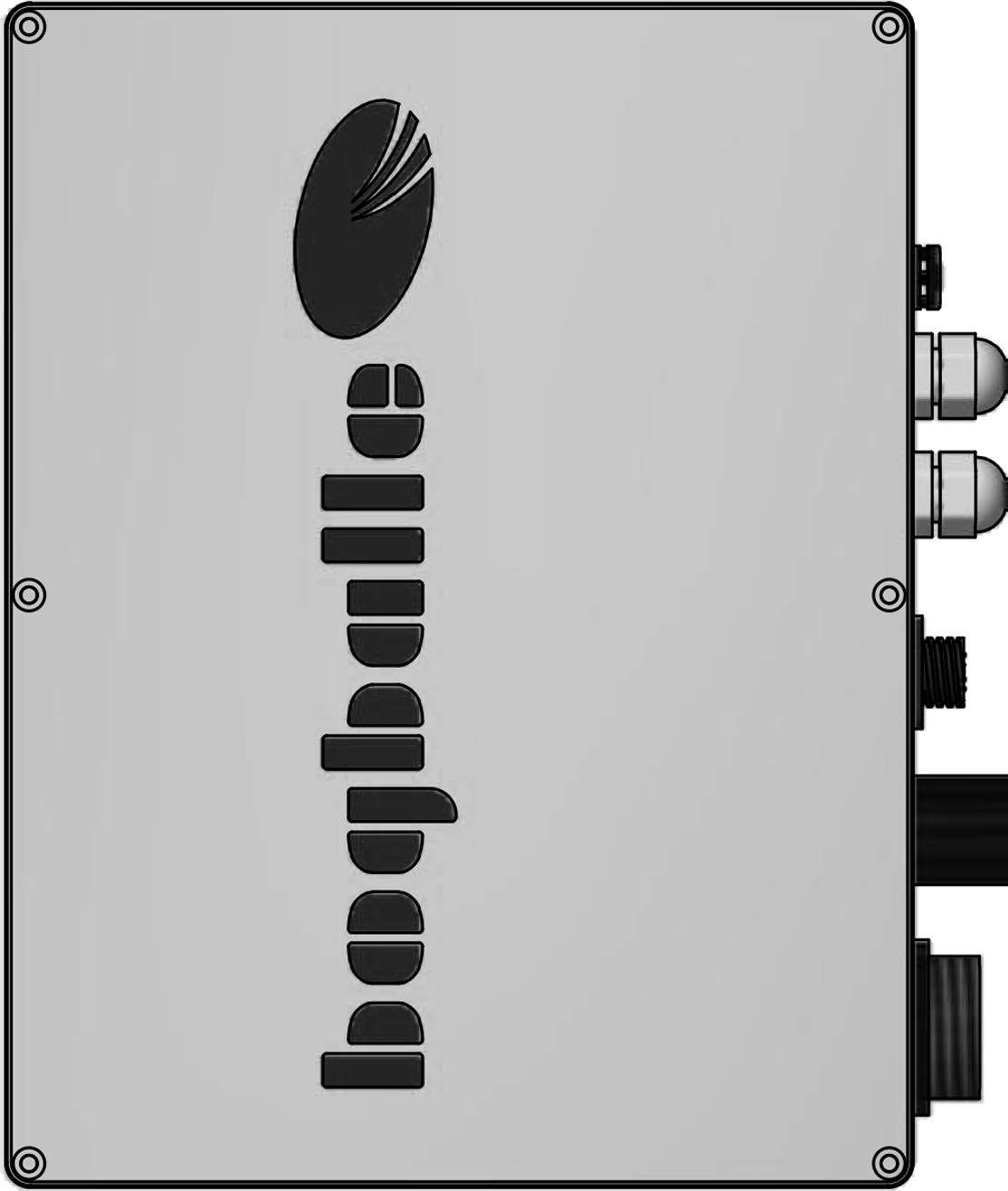

ISOBUS Controller (Gen I)

ISOBUS GEN I

Version V20220228 / 3.0.3-4.0.6 (02/2022)

Installation guidance & download links

When updating the ISOBUS Controller you'll need to download and install
these 3 programs.

1. Click to download TeeJet Pex Loader

2. Click to download TeeJet File Loader

3. Click to download BOGBALLE software

"Open" or "Run" to install the programs!

Guidance on updating ISOBUS Controller is to be found in the downloaded file (step 3) and will open automatically after the installation of "BOGBALLE software"

Please read the guidence!

-----------------

Please notice:
It's important to update both the ISOBUS board and the ZURF board.

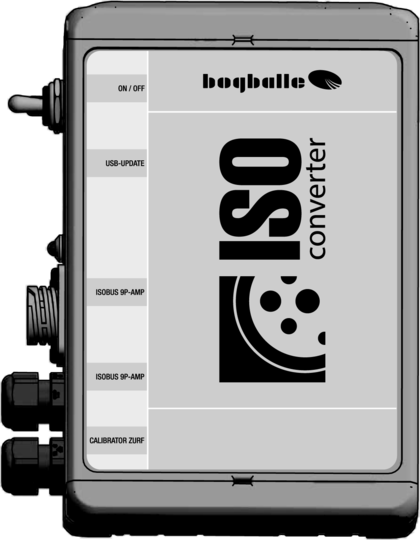

ISO Converter

ISO CONVERTER

Version 3.0.4 (12/2025)

Download software
Installation guidance

1. Download the software.

2. Run the program and follow the guidance.

3. Copy the folder "tjrun" to an EMPTY usb stick.
You'll find the "tjrun" folder on your desktop.

4. Turn on the ISO Converter via the on/off switch.

5a. When the LED lights green plug the usb stick into the ISO Converter.
5b. When the LED lights red the firmware installer is copied to the ISO Converter.
5c. When the LED lights green - remove the USB stick and restart the ISO Converter via the on/off switch.

Hereafter the ISO Converter automatically turns on into the BOGBALLE test menu and the ISO Converter is now ready for operation.

During updating the firmware – DO NOT BREAK THE CONNECTION by unplugging the ISOBUS Plug on the tractor and do not start the tractor. This will damage the ISO Converter.

CALIBRATOR ICON

CALIBRATOR ICON

Version 2.0.0 (10/2016)

Download software
Installation guidance

1a. Connect CALIBRATOR ICON to the PC's COM port via a standard serial cable. The CALIBRATOR has to be turned off!

1b. Connect the CALIBRATOR to a stabile 12V power supply - e.g. a battery.

1c. Put the CALIBRATOR ICON into "Bootloader mode" by pressing the "ON" key for 5 sec. Bootloader mode is marked by a "data icon" on the screen.

2a. Download the update by clicking the icon in the right side menu - save it or run it directly.

2b. Choose com port in the program and press "Upgrade"

Your CALIBRATOR ICON has now been updated with the newest software.

CALIBRATOR ICON (S2/S3)

CALIBRATOR ICON (S-LINE)

Version 2.00 (11/2020)

Download software
Installation guidance

Please notice

This software is for the S-line version of CALIBRATOR ICON1a. Connect CALIBRATOR ICON to the PC's COM port via a standard serial cable. The CALIBRATOR has to be turned off!

1b. Connect the CALIBRATOR to a stabile 12V power supply - e.g. a battery.

1c. Put the CALIBRATOR ICON into "Bootloader mode" by pressing the "ON" key for 5 sec. Bootloader mode is marked by a "data icon" on the screen.

2a. Download the update by clicking the icon in the right side menu - save it or run it directly.

2b. Choose com port in the program and press "Upgrade"

Your CALIBRATOR ICON has now been updated with the newest software.

Important: Download and install only the software intended for your specific control unit. Follow the update instructions carefully.
