NEW M-LINE MH – HYDRAULIC DRIVE
Precision without compromise.
Lower fuel consumption. Greater flexibility.
A NEW ERA OF HYDRAULIC PRECISION
Meet our new MH45 and MH60 – fully hydraulically driven fertiliser spreaders designed to take precision, flexibility and efficiency to the next level.
With intelligent Load Sensing technology, independent disc control and seamless integration with ISOBUS Gen III, the MH-series delivers consistent spreading performance while allowing the tractor to operate at lower engine speeds, reducing fuel consumption.
Less fuel. More control. Precision without compromise.
IN- / OFF-CENTRE.
YOUR CHOICE.
The hydraulic drive system allows you to switch between In-Centre and Off-Centre disc rotation directly from the ISOBUS terminal.
Whether spreading in the field, towards the border or from the border, the MH-series provides the flexibility to optimise fertiliser distribution for different spreading requirements.

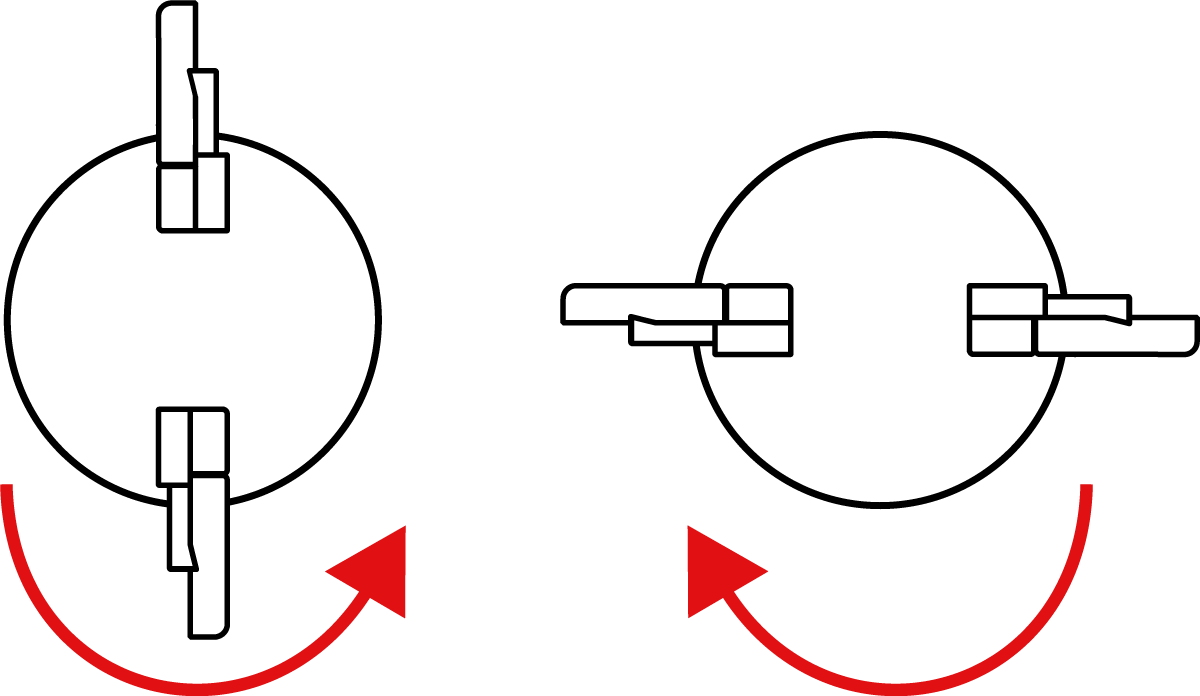

IN-CENTRE ROTATION
Maximum overlap and high spread pattern tolerance for normal field spreading.

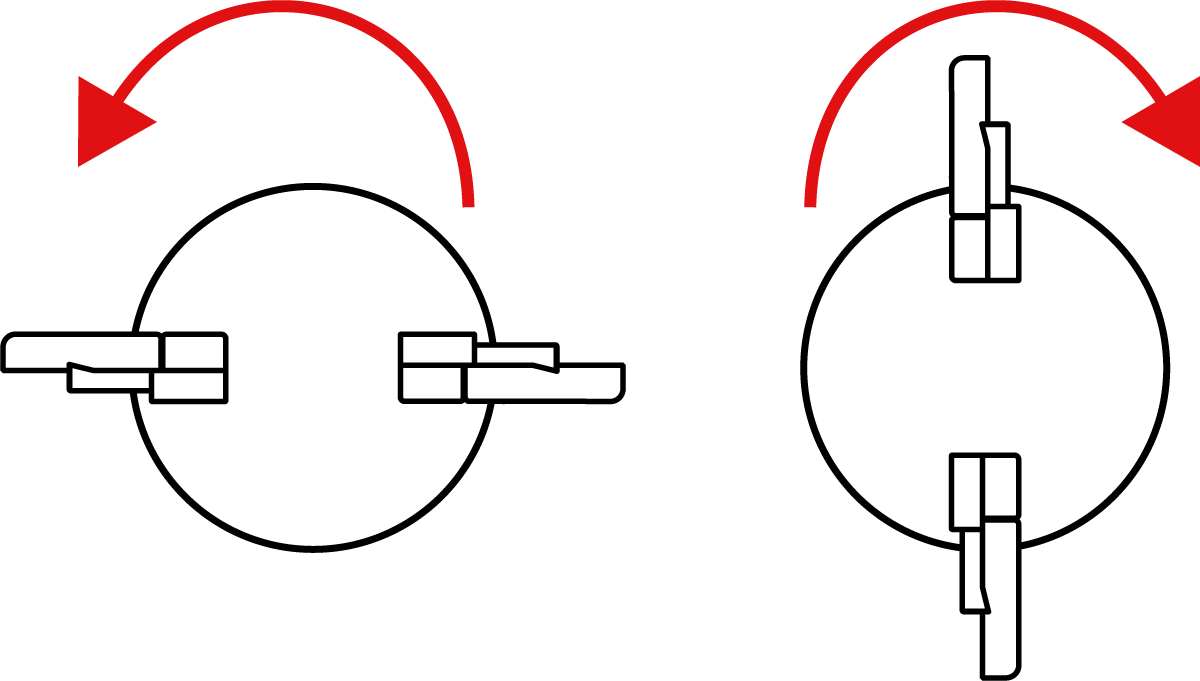

OFF-CENTRE ROTATION
Reduced overlap creates distinct left and right spread patterns, ideal for headland spreading at working widths of up to 24 metres.

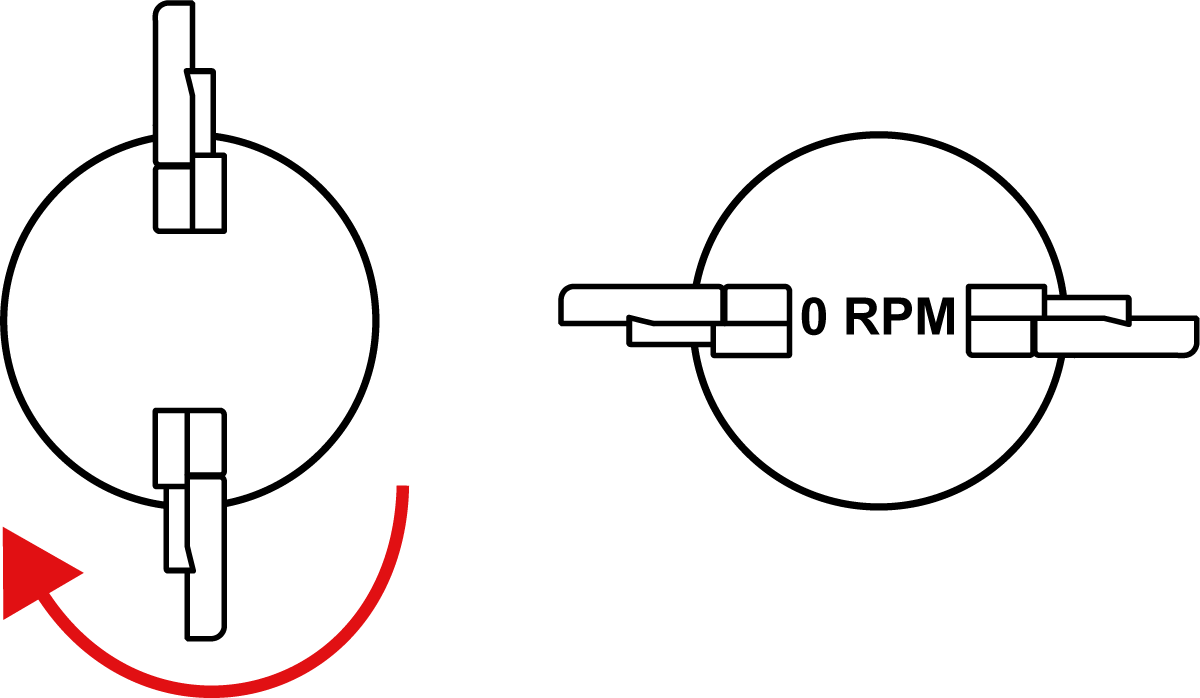

OFF-CENTRE ROTATION
Accurate spreading along field borders, ditches and streams. The right-hand spreading disc stops automatically during From Border operation.
HYDRAULIC ENGINEERING.
BUILT TO PERFORM.

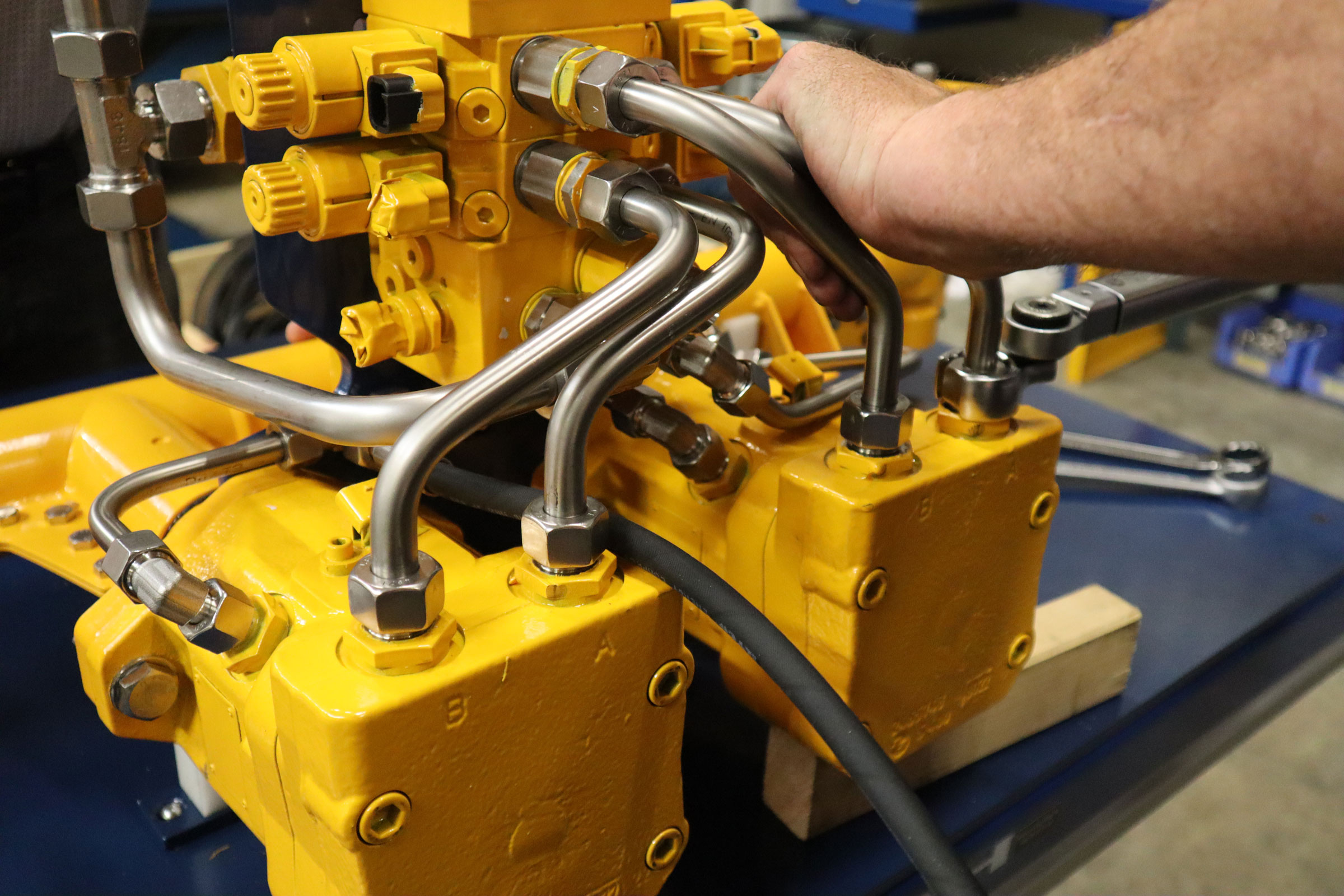

The MH45 and MH60 feature a fully hydraulic drive system built with premium Bosch Rexroth components, designed for precision, durability and reliable performance under demanding field conditions.
CONSTANT DISC SPEED
Intelligent Load Sensing technology automatically maintains a constant spreading disc speed, even when tractor engine speed and load vary – ensuring uniform fertiliser distribution under changing field conditions.
INTEGRATED MONITORING
The hydraulic drive features integrated RPM and temperature sensors for precise control and monitoring. Integrated sensors continuously monitor the actual spreading disc speed.
BUILT FOR DEMANDING CONDITIONS
Hydraulic pipes and fittings are manufactured from stainless steel to provide superior corrosion resistance and a long operating life.
INDIVIDUALLY TESTED QUALITY
Every hydraulic transmission is tested and quality-checked after assembly to ensure maximum reliability and durability.
FLEXIBLE DISC SPEED CONTROL
Disc speed can be adjusted directly from the ISOBUS terminal to match specific application requirements. Normal operation uses 750 rpm, while applications such as potash spreading may require 900 rpm.
LOW OIL DEMAND
The hydraulic drive system features two 37 cc hydraulic motors with an oil demand of 80 l/min, combining efficient hydraulic operation with precise disc speed control.
EASY AND SAFE CONNECTION

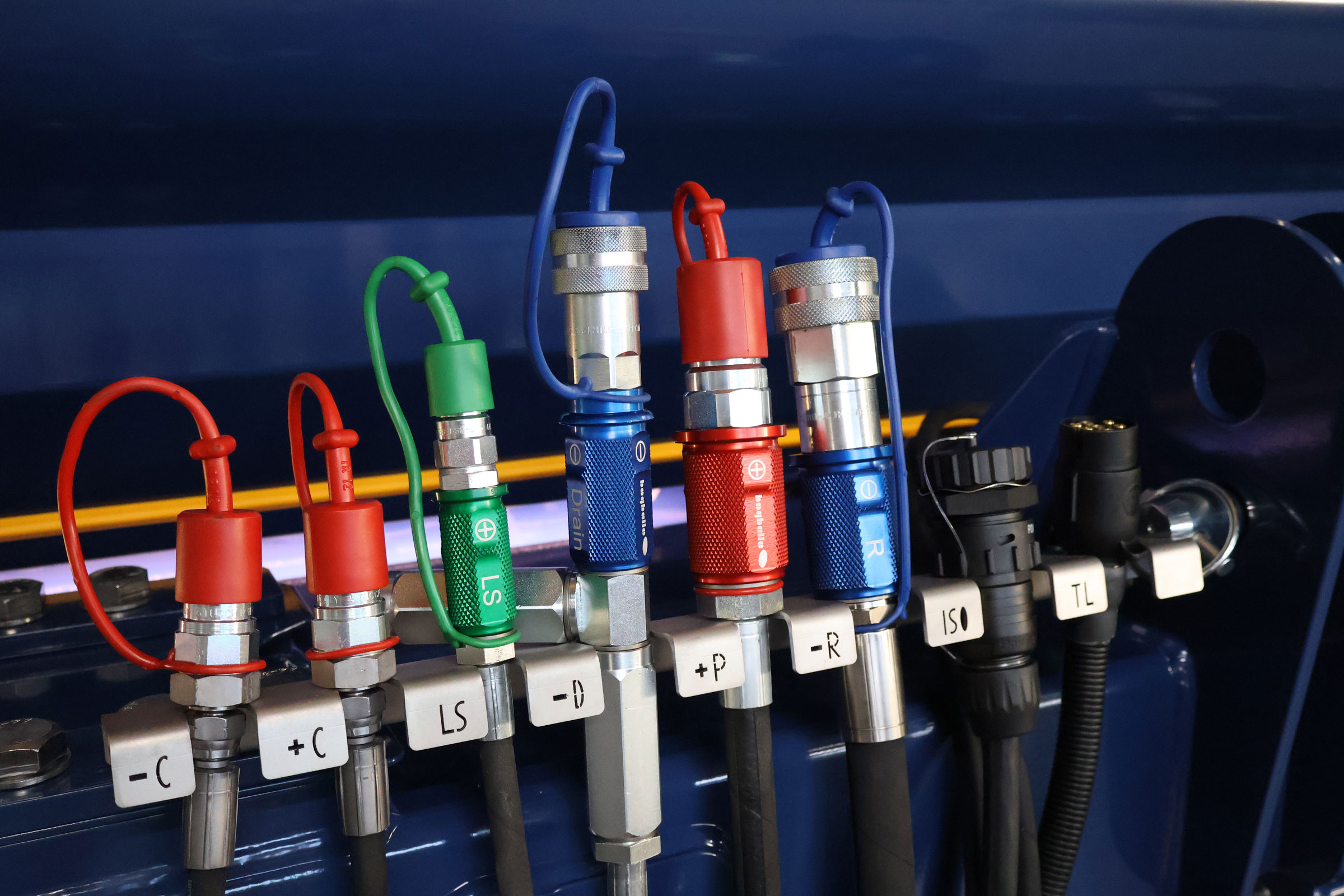

Colour-coded hydraulic couplings allow quick and error-free connection to the tractor.
A stainless steel hose and cable organiser keeps connections neatly arranged, while an integrated safety valve provides additional operational safety and machine protection.
LOW OIL DEMAND – 80 L/MIN
INTEGRATED RPM MONITORING
ISOBUS GEN III INTEGRATION
LOWER FUEL CONSUMPTION.
PROVEN IN THE FIELD.
Hydraulic drive allows the tractor to operate at lower engine speeds while maintaining consistent spreading performance. In a practical field test, the MH45 demonstrated lower fuel consumption than the PTO-driven MP45.
PRACTICAL FIELD TEST / FUEL PER HOUR
Measured in the practical field test
Results from a specific practical field test. Actual fuel savings depend on tractor, field conditions and operating requirements.
KEY SELLING POINTS
Engineered for precision. Designed for flexibility.
READY TO EXPERIENCE THE MH-SERIES?
Discover how the MH45 and MH60 can bring greater precision and flexibility to your fertiliser spreading. Contact your local BOGBALLE dealer for expert advice and more information.
